0.22μM 0.5μM Micropore Disc Infusion In-Line Iv Filters With Pp / Pes Membrane

Product Details:
Place of Origin: Yuhuan,CHINA
Brand Name: XN/OEM
Certification: ISO9001
Model Number: XN
Payment & Shipping Terms:
Minimum Order Quantity: 12000 Pcs
Price: $0.10 - $0.25 per piece
Packaging Details: standard export carton packaging / OEM
Delivery Time: 15-20 work days
  • Detail Information
  • Product Description

Detail Information

Product Name: 0.22μm And 0.5μm Micropore Disc In-line IV Filter With PP/PES Membrane Pore Size: 0.22 μm Or 5.0 μm
Filter Media: Hydrophilic PES (PP Supported) Vent Media: Hydrophobic PTFE 0.45μm
Color: Colorless And Transparent Inlet/Outlet Connections: Luer Slip
Filter Housing: ABS Number Of Plies: Single-deck/double-deck
Standard: YY0286.1 GB8368 -2018 ISO 8536-4
Highlight:

0.22um In-Line IV Filter

,

0.5um In-Line IV Filter

,

Micropore In-Line IV Filter

Product Description

0.22μm and 0.5μm micropore Disc Infusion in-line IV Filters with PP/PES Membrane

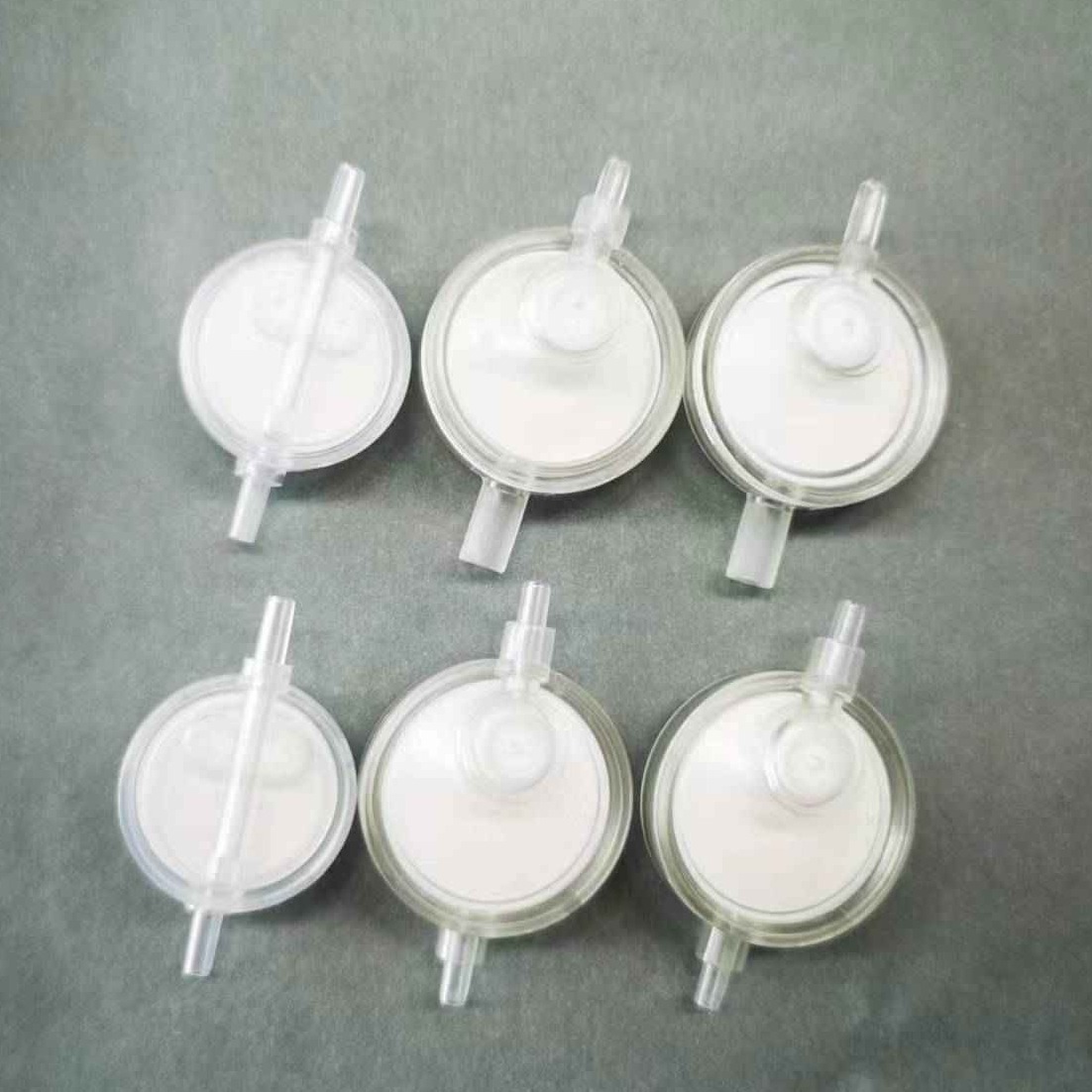

0.22μM 0.5μM Micropore Disc Infusion In-Line Iv Filters With Pp / Pes Membrane 0



Detail Information:

 Product Name  IV Infusion Filter  Filter Media  Hydrophilic PES (PP supported)
 Color  Colorless and transparent  Pore Size  0.22 μm or 5 μm
 Inlet/Outlet Connections  Luer Slip  Number of plies  Single-deck / Double-deck



















Features:

  • Auto-stop filter
  • Precision filtration of fine particles
  • Maximizes drug delivery of critical pharmaceuticals
  • 2 Different colored housings and pad printing available
  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip

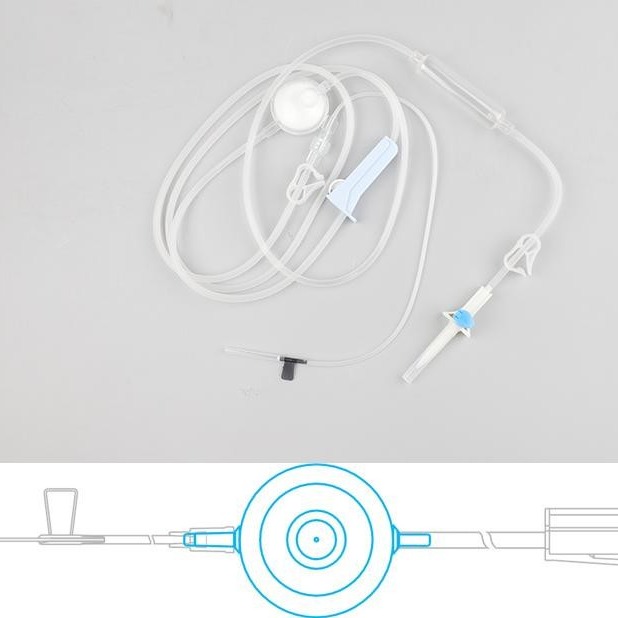

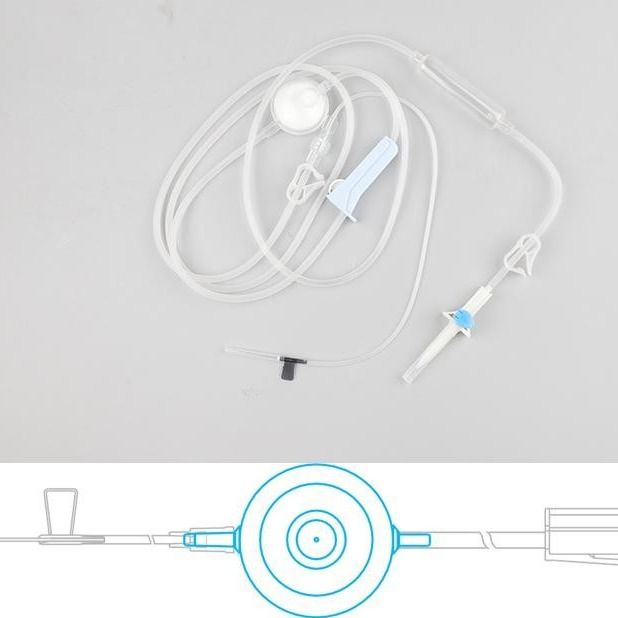

0.22μM 0.5μM Micropore Disc Infusion In-Line Iv Filters With Pp / Pes Membrane 1



Product Description:

In-Line IV Filters are disposable filter devices designed for Intravenous (IV) therapy to provide liquid drug filtration. With standard luer slips which are easy to connect to IV tubing sets, these micro filters from XINNA help to effectively retain fine particles and other possible contaminants including bacteria, fungi and endotoxins, and thus reduce the risk of infection and ensure the safety of the patient.



An IV filter from us consists of three parts, premium ABS housing, medical-grade Polyethersulfone (PES) membrane filter for fluid filtration and Polytetrafluoroethylene (PTFE) membrane for air-eliminating purpose. Unlike many who have to purchase the filter medias, we manufacture the PES and PTFE membranes on our own and in compliance with international quality standard, therefore are more flexiable in providing tailored solution and buget-tight solutions. Working with us, you will have a reliable and cost-effective filtration solution to best serve your needs and expand your market.

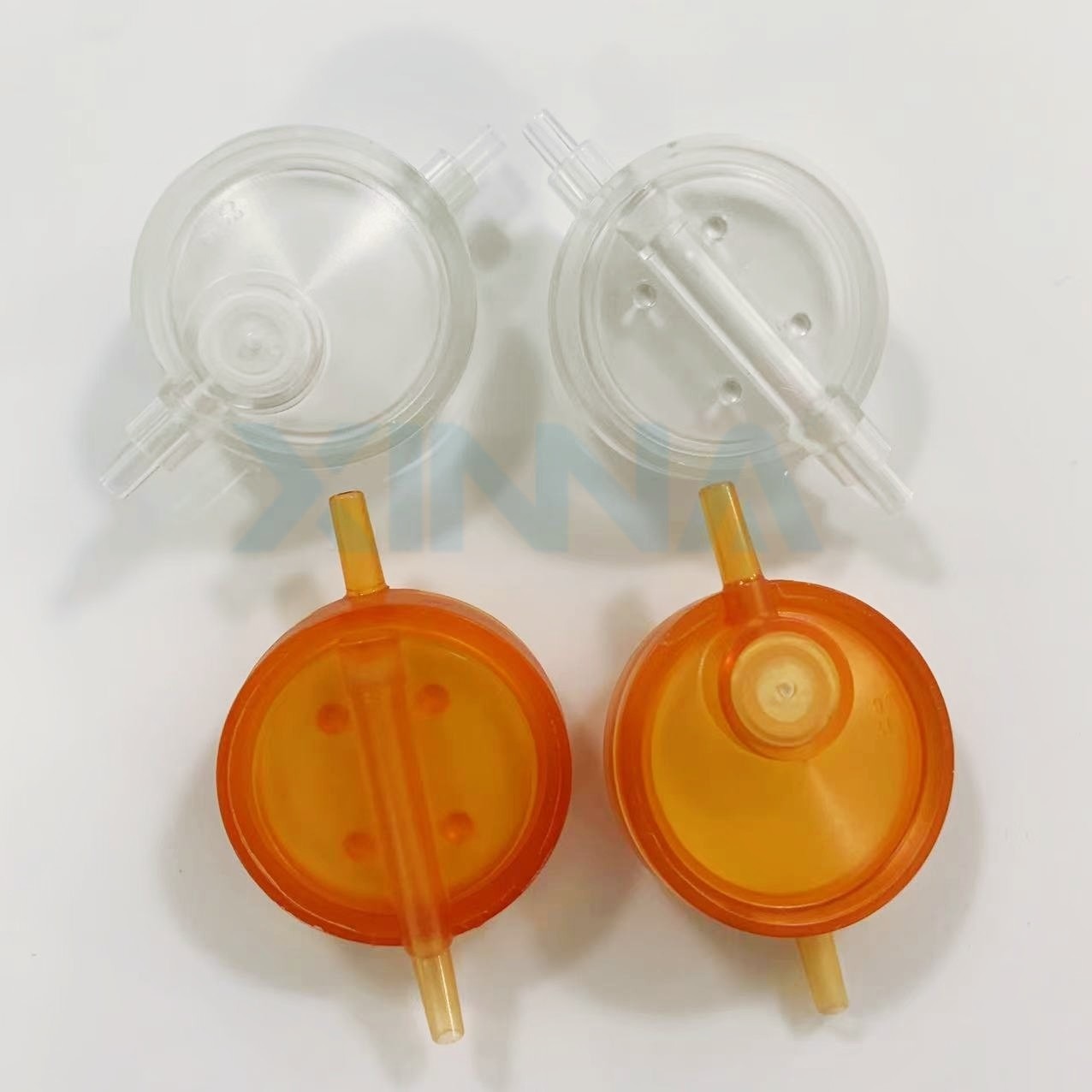

0.22μM 0.5μM Micropore Disc Infusion In-Line Iv Filters With Pp / Pes Membrane 2



Applications:

  • Intravenous IV solutions
  • Drug delivery
  • Infusion therapy
  • Neonatal infusion therapy
  • Pain management devices
