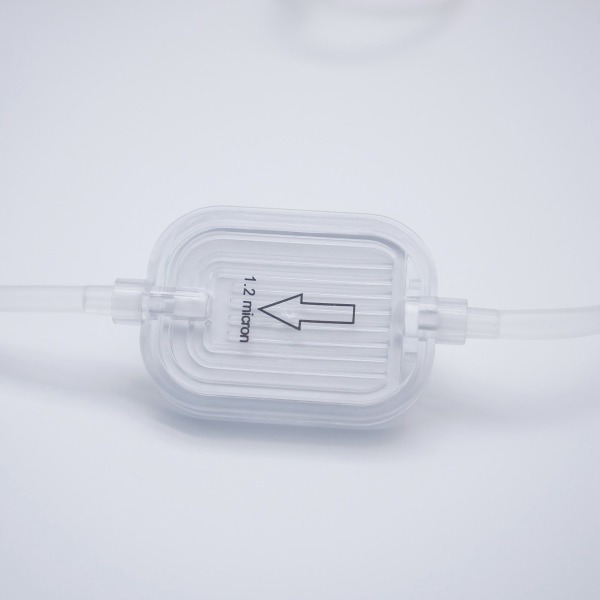

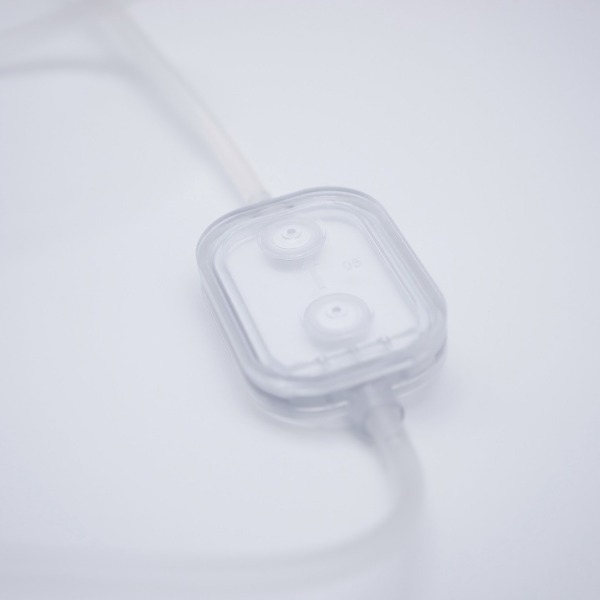

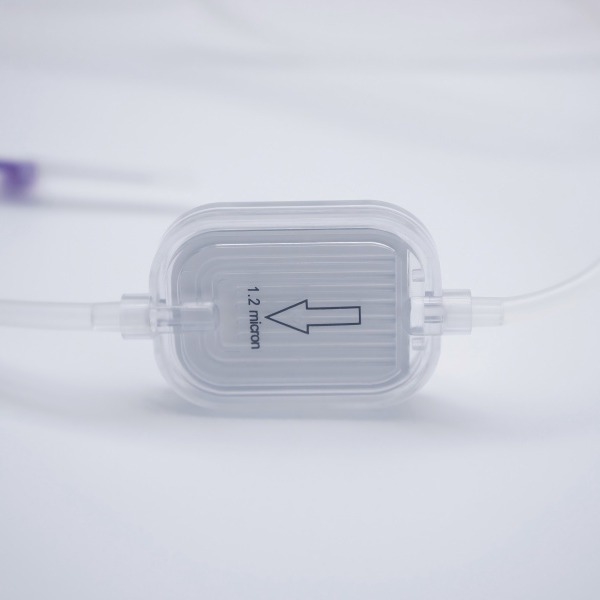

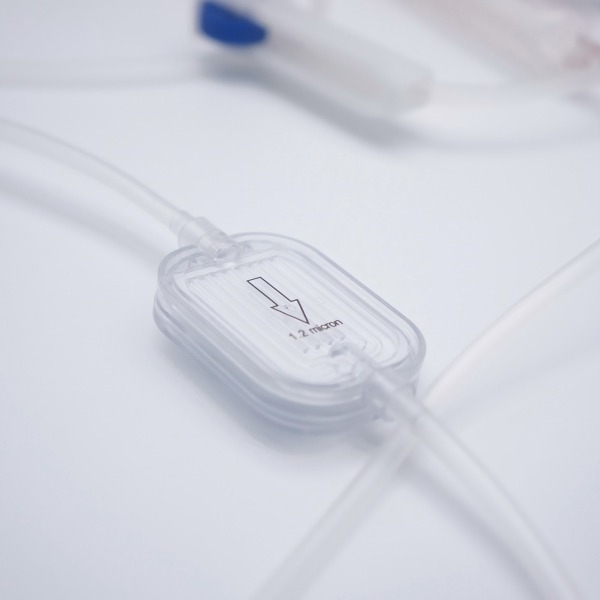

1.2 micron IV Filter for infusion therapy
1.2 micron IV Filter for infusion therapy 1.2 micron IV Filter for infusion therapy 1.2 micron IV Filter for infusion therapy 1.2 micron IV Filter for infusion therapy

1.2 micron IV Filter for infusion therapy

Product Details:
Place of Origin: China
Brand Name: OEM avaliable
Certification: YY 0286.1 GB 8368-2018 ISO9001
Model Number: F33
Payment & Shipping Terms:
Minimum Order Quantity: 100,000PCS
Price: $0.15-$0.22 per piece
Packaging Details: 750pcs per pack with label , 4packs per carton or customizable
Delivery Time: 30 days
Payment Terms: L/C, T/T
Contact Now
  • Detail Information
  • Product Description

Detail Information
Product Name: Disposable 1.2 Micron IV Filter Filter Housing: ABS
Pore Size: 1.2um Medium Material: PES , PTFE For Vents
Stop Liquid Height: ≥1.5Meter Assembly Mode: Heat Melting Or Ultrasonic Welding
Sterilization: Non-sterile/EOS Type: F, Disposable
Advantage: Automatic Liquid Stop Color: Natural, Lightproof Avaliable
Compatibility: Compatible With Standard IV Tubing Warranty: 3 Years
Application: Infusion Set Country Of Origin: China
Highlight:

1.2 micron

,

iv filter 1.2μm

,

infusion set

Product Description

IV Filter With Hydrophilic PES-pp 1.2μm and Hydrophobic PTFE 0.45μm for infusion set



F33 IV Filter is an air eliminating filter for the removal of inadvertent particulate debris and other components like incomplete mixing of drugs and entrained air in catheter which may be found in solutions intended for intravenous use. The filtration efficiency of the membrane and the overall design of the filter can impact the safety of drug delivery for human beings.



Features :

  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip
  • Precision filtration of fine particles
  • High retention efficiency
  • Range of pore size options
  • Automatic air-stop
  • Lightproof-colored housings for light sensitive drugs is available
  • Printing available for ease of product identification

Specifications:





Dimensions: 57*29.5*0.94mm(inlet/outlet connector included)
Weight: 5.7-5.8g
Filtration area: 6.0CM2
Venting area: 0.54CM2
Venting air flow rate: 25ml/min@5kpa
Max burst pressure: 3.6bar(52.5psi)
Operating Temp: 5-40℃
Storage Temp: 0-50℃
Filtration rate: PES-PP 5.0μm ≥95%,
PES-PP 3.0/2.0/1.2μm ≥90%
Min water flow rate: PES-PP 1.2μm ≥500ml/10min@10kpa
PES-PP 2μm ≥600ml/10min@10kpa
PES-PP 3μm ≥800ml/10min@10kpa
PES-PP 5μm ≥1000ml/10min@10kpa
Sterilization: Ethlene Oxide(Max 60℃)



Applications:

  • Filter is designed for use in filtration of intravenous for removal of particles larger than 1.2μm
  • Infusion set



Package&Label:



3000pcs/box, 4 inner PE bags with 750 pcs inside each. each bag is sealed separately and cushion between each other.
Each bag is labeled with information as following, different lots in one box are closed separately and labeled seperately to prevent.

1.2 micron IV Filter for infusion therapy 0
