1.2 Micron Inline IV Filter for Infusion Sets

1.2 Micron Inline IV Filter for Infusion Sets

Product Details:
Place of Origin:	China
Brand Name:	XINNA
Model Number:	Inline IV Filter 1.2um
Payment & Shipping Terms:
Price:	Negotiable, quotation based on pore size and order quantity
Packaging Details:	3000 pcs per carton, 4 inner PE bags of 750 pcs each
Payment Terms:	T/T,L/C

Contact Now

Detail Information
Product Description

Detail Information
Application:	Intravenous Therapy	Function:	Micro-particles Removal
End Connections:	Luer Lock	Medium Material:	PES, PP, PTFE Membranes
Highlight:	PES-PP Membrane Construction , Integrated PTFE Hydrophobic Vent Membrane , 1.2 Micron Filtration for Infusion Sets

Product Description

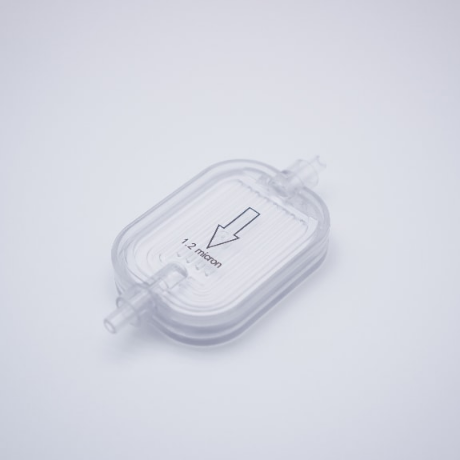

1.2 Micron Inline IV Filter for Infusion Sets

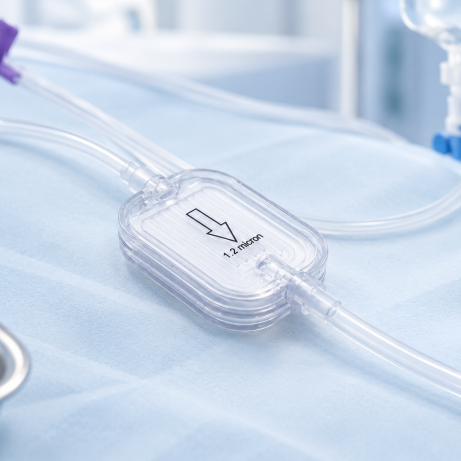

XINNA single-use inline IV filters are designed for integration into intravenous infusion sets and compatible medical fluid delivery systems. The liquid filtration section uses a PES membrane with a PP support layer, while a PTFE membrane is incorporated into the vent window for air venting.

Liquid Membrane
Hydrophilic PES - PP

Vent Membrane
hydrophobic PTFE, 0.45µm

Housing
ABS

Key Features

Fine particle filtration — available in 1.2 / 2.0 / 3.0 / 5.0µm liquid pore sizes to meet specified filtration requirements.

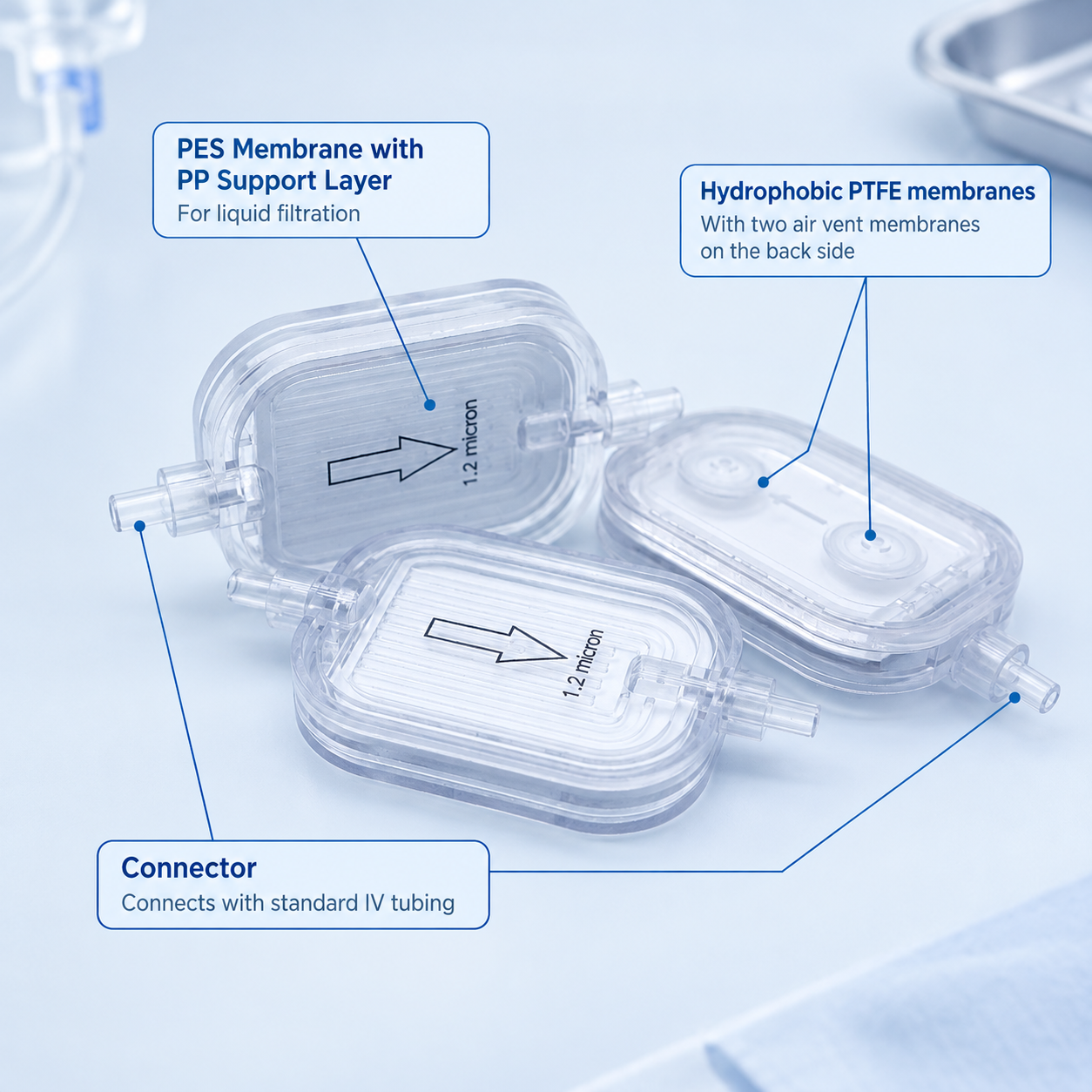

Dual-membrane design — PES membrane with PP support layer for liquid filtration, combined with a PTFE vent membrane.
Standard configurations — established specifications and connection designs for compatible IV sets.
Quality control — product inspection and supporting quality documentation available.
OEM supply — designed for medical device manufacturers seeking inline filter components for infusion set production.

Specifications

Dimension	57 × 29 × 0.94 mm (connectors included)
Weight	5.7 – 5.8 g
Connector (inlet / outlet)	Φ3.1 mm / 3.6 mm, compatible with standard IV tubing
Liquid pore size	1.2 / 2.0 / 3.0 / 5.0 µm
Vent membrane pore size	0.45 µm
Filtration area / venting area	6.0 cm² / 0.54 cm²
Filtration rate	PES-PP5.0/3.0/2.0/1.2μm ≥ 90%
Venting air flow rate	25 mL/min @ 5 kPa
Minimum water flow rate:	1.2 μm ≥ 500ml/10min@10kpa (0.1 bar) 2 μm ≥ 600ml/10min@10kpa (0.1 bar) 3 μm ≥ 800ml/10min@10kpa (0.1 bar) 5 μm ≥ 1000ml/10min@10kpa (0.1 bar)
Max burst pressure	3.6 bar (52.5 psi)
Priming volume	≤ 2.0 mL
Pyrogenicity	≤ 0.5 EU/mL
Sterility	Non-sterile or EO-sterilized (max. 60 °C)

Materials & Construction

Housing	ABS
Liquid membrane	Hydrophilic PES (PP supported)
Vent membrane	PTFE
Housing color	Clear or light-blocking amber
Sealing method	Heat sealing or ultrasonic welding
Warranty	3 years

Packing & Standards

Packing	3000 pcs per carton, 4 inner PE bags of 750 pcs each; every bag sealed separately with cushioning in between
Standard & compliance	YY0286.1, GB 8368-2018, ISO 8536-4
Quality system	In compliance with ISO 9001

OEM & Customization: custom pore sizes, housing colors and connection designs are available. Send your drawings or specification sheet for a technical review and quotation.
