Medical Grade PVDF Membrane Filter Paper Hydrophobic For Air Venting Lab Use

Product Details:
Place of Origin: China
Brand Name: No
Certification: ISO9001
Model Number: XN-PVDF
Payment & Shipping Terms:
Minimum Order Quantity: 600mts
Price: $16.9 - $35 per square meter
Packaging Details: Standard seaworthy roll packking or carton packaging
Delivery Time: 15 to 30 days
Payment Terms: L/C, T/T
  • Detail Information
  • Product Description

Detail Information

Product Name: PVDF Membrane Filter Material: PVDF
Pore Size: 0.22/ 0.45/ 1.2/ 2/ 3/5um Wettability: Hydrophobic
Filtration Efficiency: 99% PH Range: 2-10
Oxidation Resistance: Excellent Applications: PVDF Syringe Filters, Micron IV Filters, HPLC & GC
Highlight:

Air Venting PVDF Membrane Filter

,

Medical PVDF Membrane

,

Hydrophobic PVDF Filter Paper

Product Description

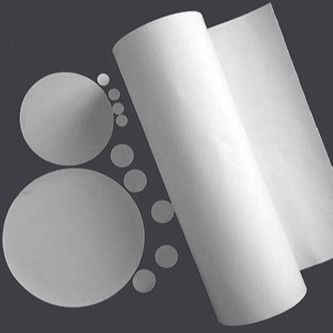

Medical Grade PVDF Membrane Filter for Air Venting Lab Use Hydrophobic PVDF Filter Paper

The medical grade Micron PVDF membrane filters from us are made of Polyvinylidene fluoride media and manufactured in our class 100,000 clean-rooms with guaranteed quality and superior strength preventing distortion or breaking when subjected to aggressive further processing. Due to its super oleophobic and hydrophobic properties,  PVDF Membrane is ideal for medical device venting applications as well as gas filtration in laboratories. A variety of pore sizes and formats (rolls, sheets and discs) for your choice, OEM service available too for the hydrophobic PVDF Membranes to meet your specific application requirements.



Features

Hydrophobic PVDF membrane filter has many great properties as listed below,

  • Super hydrophobic
  • Uniform pore size
  • High throughput
  • Low extractables
  • Broad chemical compatibility
  • High thermal resistance
  • Less protein binding than other membrane filters
  • High retention efficiency
  • Excellent oxidation resistance



Specifications

Product Name PVDF Membrane
Material PVDF
Thickness 90-150μm
Membrane Pore Size 0.22/0.45/ 1.2/ 2/ 3/ 5/ 20μm
Filtration Rate 99%
pH Range 2-10
Format Rolls, Sheets, Discs



Applications

PVDF Membrane Filter is highly recommended for solvent filtration, air venting and gas filtration, its very wide range of applications include,

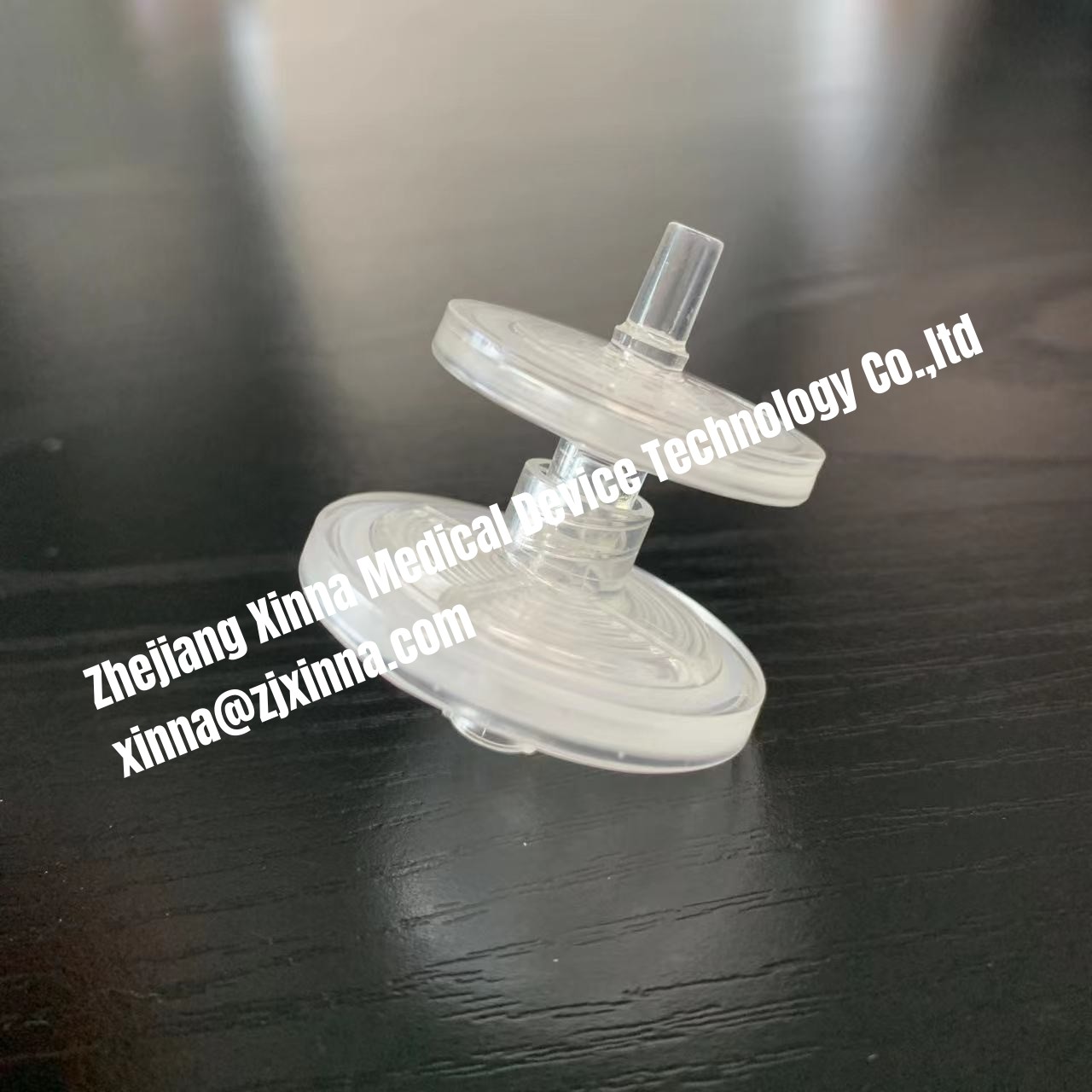

  • Micron IV filter air vents
  • IV infusion Spike air venting
  • Transducer protectors air filtering
  • Pharmaceuticals sterilization
  • Vacuum suction canisters
  • Solvent filtration
  • HPLC sample preparation
  • GC media preparation



Medical Grade PVDF Membrane Filter Paper Hydrophobic For Air Venting Lab Use 0
