Air Venting 0.22μm PVDF Membrane Roll Hydrophobic For HPLC Analysis

Product Details:
Place of Origin: China
Brand Name: No
Certification: ISO9001
Model Number: XN-PVDF
Payment & Shipping Terms:
Minimum Order Quantity: 600 square meters
Price: $16.9 - $35 per square meter
Packaging Details: Standard seaworthy roll packking or carton packaging
Delivery Time: 15 to 30 days
Payment Terms: L/C, T/T
  • Detail Information
  • Product Description

Detail Information

Product Name: PVDF Membrane Filter Material: PVDF
Pore Size: 0.22μm, 0.45μm, 1.2μm,2μm,3μm,5μm Wettability: Hydrophobic
Filtration Efficiency: 99% PH Range: 2-10
Oxidation Resistance: Excellent Applications: Syringe Filters, IV Filters, HPLC & GC
Highlight:

PVDF Membrane Roll Hydrophobic

,

HPLC PVDF Membrane

,

Air Venting 0.22 μm PVDF Filter

Product Description

Air Venting 0.22 μm Hydrophobic PVDF Membrane Rolls for I.V. Filters and HPLC Analysis

Made from 100% polyvinylidene difluorides, hydrophobic PVDF Membranes are high temperature resistant with broad chemical compatibility that allows high flow rates in a wide range of gas sterilization applications. And because of its low protein binding characteristics, PVDF membrane filters are well-suited for filtration of small volume of protein solutions for HPLC analysis. The Hydrophobic PVDF Membrane Filter Rolls from us do not require the use of any wetting agents, therefore increase sample purity during sterilization or clarification process.



With similar characteristics to PTFE membrane, PVDF membrane is a more cost-effective option, for which it is often used as an alternative in situations where PTFE membranes are considered too expensive .



Features

  • Hydrophobic
  • Negligible extractables
  • Super low protein binding
  • High flow rates and throughputs
  • High thermal resistance
  • Broad chemical compatibility



Specifications

Product Name Hydrophobic PVDF Membrane Filter Rolls
Thickness 90~100 μm
Disc format Φ13, Φ25, Φ47, Φ90, Φ142, Φ293 or Custom
Roll format Custom width and length
Pore Size 0.1μm, 0.22μm, 0.45μm etc
pH 2~10
Flow Rate 0.22 μm ≥ 3 mL/min/cm2
Flow Rate 0.45 μm ≥ 7 mL/min/cm2
0.22 μm Integrity Test-water bubble point at 23 ≥ 310kpa
0.45 μm Integrity Test-water bubble point at 23 ≥ 150kpa
Sterilization Autoclave at 121, Gamma, ETO





Applications

PVDF Membrane Filter is highly recommended for solvent filtration, air venting and gas filtration, its very wide range of applications include,

  • Micron IV filter air vents
  • IV infusion Spike air venting
  • Transducer protectors air filtering
  • Pharmaceuticals sterilization
  • Vacuum suction canisters
  • Solvent filtration
  • HPLC sample preparation
  • GC media preparation

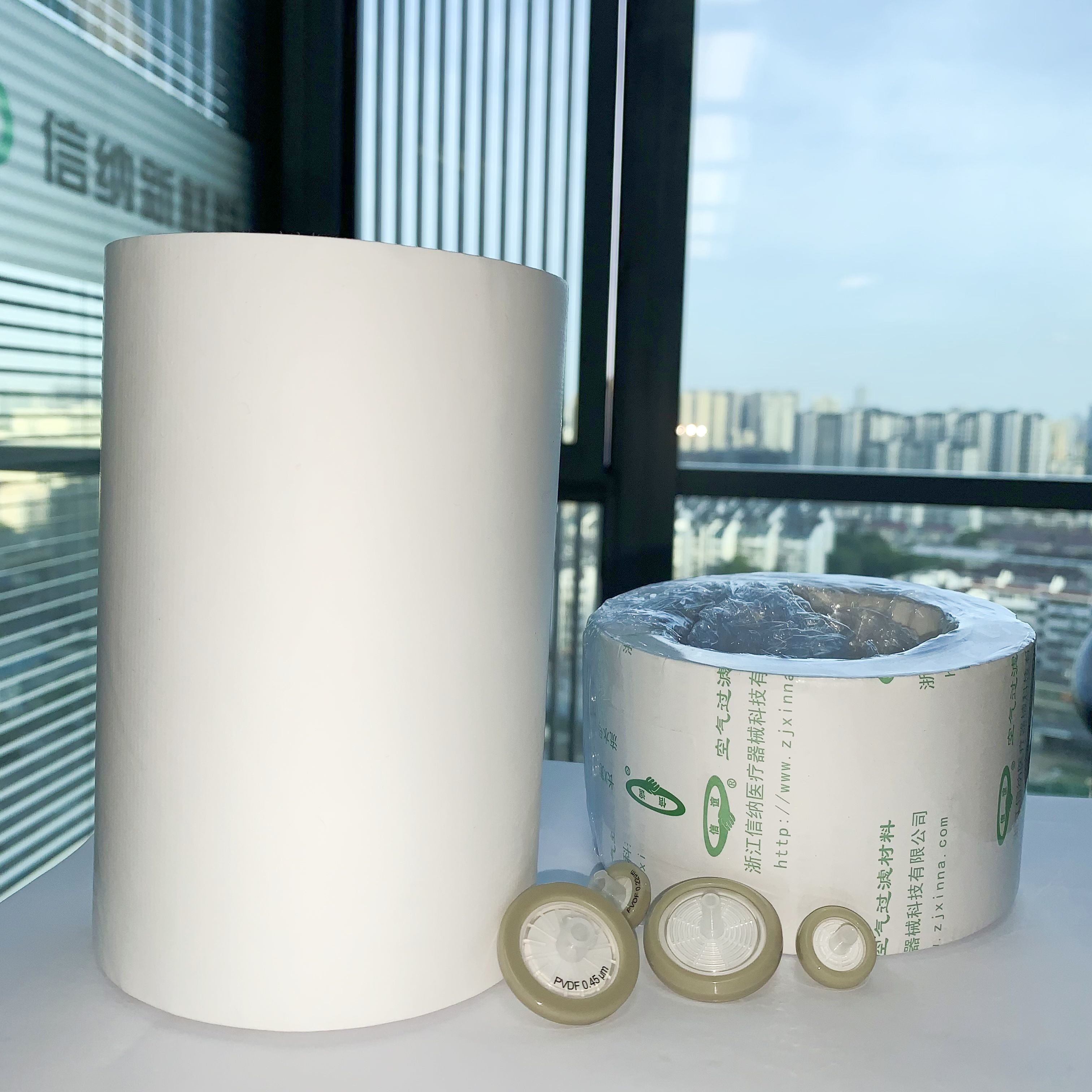

Air Venting 0.22μm PVDF Membrane Roll Hydrophobic For HPLC Analysis 0
