Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | No |
| Certification: | ISO9001 |
| Model Number: | PES-PP/PET |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 square meters |
| Price: | $25.00~30.00 per Square Meter |
| Packaging Details: | Roll packaging or standard export carton packaging |
| Delivery Time: | 15 to 30 days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Product Name: | Polyethersulfone (PES) Membrane | Material: | Polyethersulfone (PES) ,with PP Or PET Supporting Layer |
|---|---|---|---|
| Pore Size: | 0.45μm | Wettability: | Hydrophilic |
| Filtration Efficiency: | ≥95% | Thickness: | 0.2-0.35MM |
| Stop Liquid Height: | ≥1.2M | Welding Method: | Heating Or Ultrosonic |
| Structure: | Asymmetric | Compatibility: | Acids, Alkalis, Solvents |
| Highlight: | PET Supporting Layer Hydrophilic Polyethersulfone Membrane,Hydrophilic Polyethersulfone PES Membrane,0.45um Polyethersulfone PES Membrane |
||
Product Description

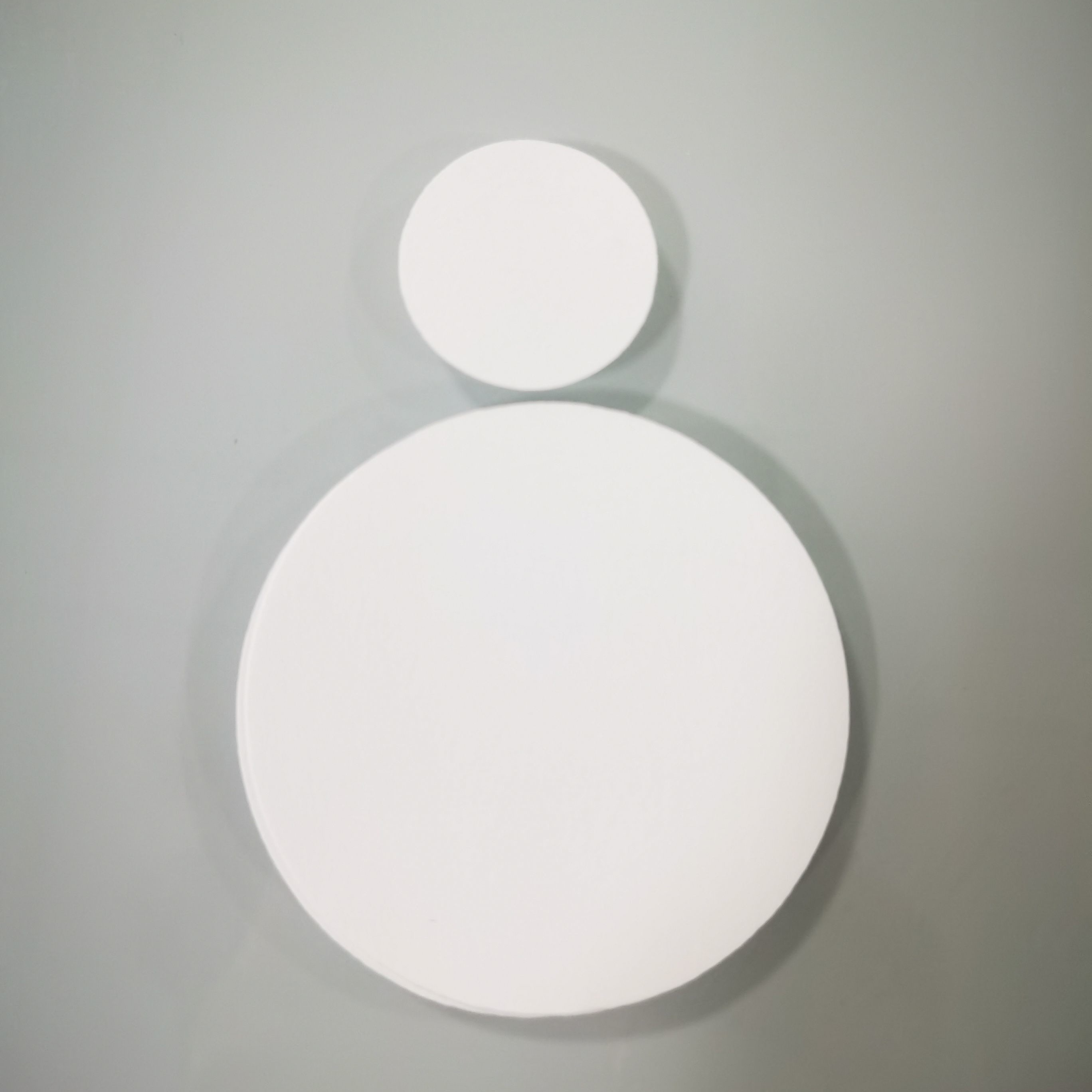

Hydrophilic PES Membrane 0.45μm Pore Size, PP or PET Support Layer, Low Adsorption

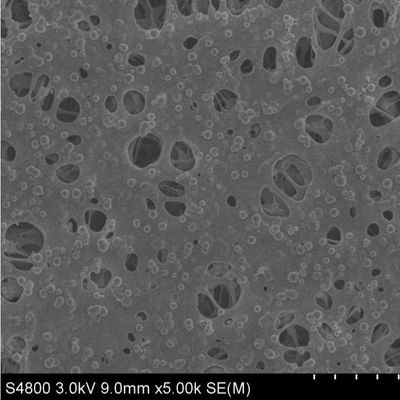

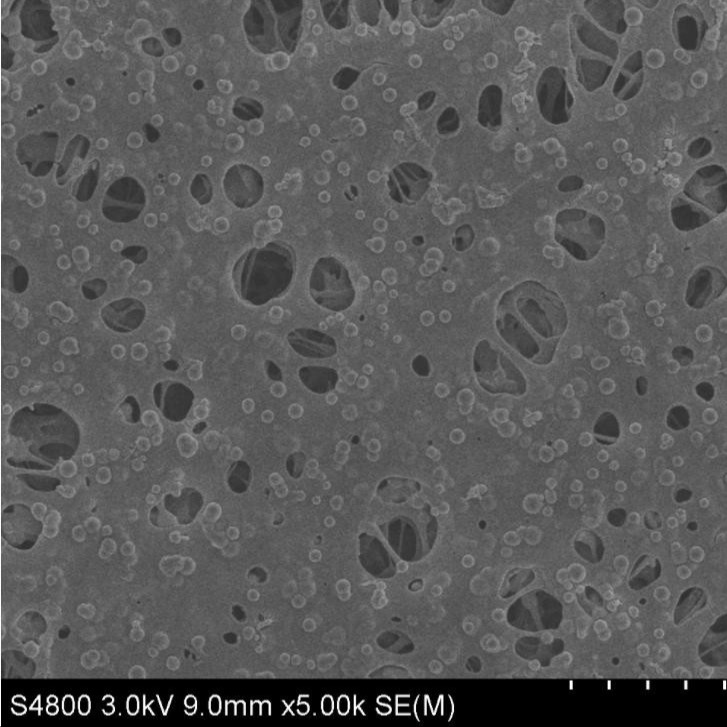

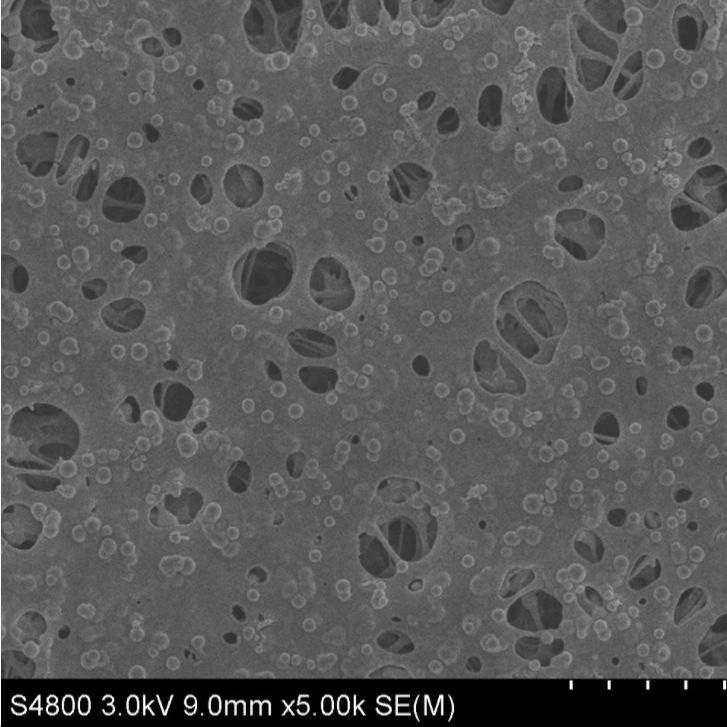

The polyethersulfone (PES) microfiltration membrane adopts an asymmetric structure with uniform openings. Polyethersulfone has excellent heat resistance, physical and mechanical properties, insulation properties, etc. PES microfiltration membrane can ensure low protein adsorption and low dissolution characteristics during the filtration process.
Our company adopts proprietary membrane manufacturing technology to achieve the best combination of interception efficiency and flux through the control of micropores. The produced filter membrane has precise pore size control and reliable mechanical strength. All raw materials meet the standards and requirements of pharmaceutical grade filter membranes.
Product Advantages :
Specifications :
| NO. | PORE SIZE (μm) | TEST SOLUTIONS | BUBBLLE POINT (MPa) | FLOW RATE(ml/min/cm²) | THICKNESS (μm) |
| 1 | 0.04 | 60%IPA | 0.26~0.30 | 3 | 110 or customizable |
| 2 | 0.1 | 0.20~0.26 | 8 | ||
| 3 | 0.2 | Pure Water | 0.35-0.45 | 20 | |
| 4 | 0.45 | 0.25-0.35 | 45 |
Applications
Our PES membrane is suitable for production processes in medical, food and beverage, as well as drinking water, microelectronics, and fine chemical industries. We will provide extensive assistance and cooperation to ensure that filters meet the technical and regulatory requirements of your industrial applications and operations.
