Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | No |
| Certification: | ISO9001 |
| Model Number: | XN-PTFE/PP or PET |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 Square Meters |
| Price: | $35.00 - $45.00 per square meter |
| Packaging Details: | Roll packaging or standard export carton packaging |
| Delivery Time: | 15 to 30 days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Product Name: | Hydrophobic PTFE Membrane | Material: | 100% PTFE With PP Or PET Supporting Layer |
|---|---|---|---|
| Pore Size: | 0.05μm，0.1μm, 0.2μm，0.45μm Or Customizable | Wettability: | Hydrophobic |
| Filtration Efficiency: | Up To 99% | Gas Flux: | Customizable |
| Welding Method: | Heating Or Ultrosonic | Thickness: | 0.18-0.30MM |
| Width: | Customizable | Length: | ≤200Meters/roll |
| Packing: | Rolls Or Disc | ||
| Highlight: | Chemical Resistance PTFE Membrane Sheet,Supporting Layer Hydrophobic PTFE Membrane,Microporous Hydrophobic PTFE Membrane |
||
Product Description

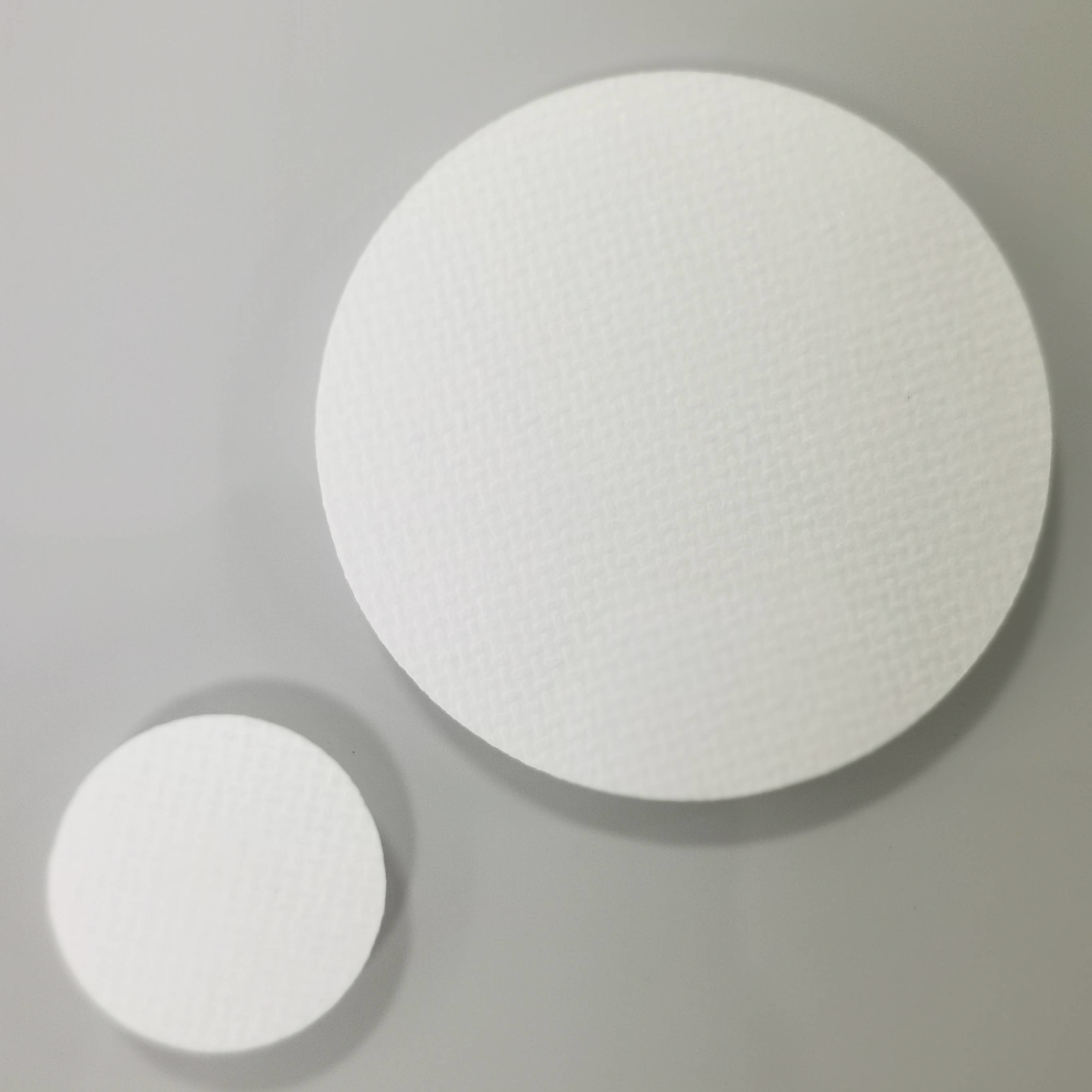

PTFE Membrane: Maximum Chemical Resistance, High Temperature Stability with PP or PET suppotive layer
The hydrophobic PTFE membrane we XINNA provide is made by using PTFE membrane with PP or PET supporting layer non-woven fabric through thermal composite process. It does not contain adhesives or soluble substances, has high peel strength, stable composite strength, and is easy to weld and seal. Natural hydrophobicity, excellent breathability, high water pressure resistance, and significantly enhanced mechanical properties are widely used in various filtration fields.
Product advantage of PTFE Membranes
Specifications
| NO. | PORE SIZE (μm) | TEST SOLUTIONS | BUBBLLE POINT (MPa) | FLOW RATE(ml/min/cm²) | THICKNESS (μm) |
| 1 | 0.05 | 60%IPA | 0.26 | 3 | 100-300 or customizable |
| 2 | 0.10 | 0.18 | 5 | ||
| 3 | 0.22 | 0.16-0.20 | 15 | ||
| 4 | 0.45 | 0.08-0.15 | 35 | ||
| 5 | 0.60-5.00 | Standard | Standard |
Applications of PTFE Membranes
