Disposable Transducer Protector with ETO Sterilization and Injection Molding for Hemodialysis and Air Filtration

Disposable Transducer Protector with ETO Sterilization and Injection Molding for Hemodialysis and Air Filtration

Product Details:
Place of Origin:	China
Brand Name:	NO
Certification:	ISO9001
Model Number:	XN-TP
Payment & Shipping Terms:
Minimum Order Quantity:	50000 pieces
Price:	$0.05 - $0.06 per piece (FOB)
Packaging Details:	2000 pcs/pack standard export carton packaging or custom
Delivery Time:	25 to 30 days
Payment Terms:	L/C,T/T
Supply Ability:	contact our sales

Contact Now

Detail Information
Product Description

Detail Information
Product Name:	Transducer Protector, TP Filter	Filter Media:	Hydrophobic 0.22 μm PTFE Membrane
Housing Material:	ABS	Color:	Natural, Clear/blue
Operating Temperature:	0-50℃	Application:	Hemodialysis Blood Lines ,Air Filtration
Technics:	Injection Molding	Sterilization:	ETO
Highlight:	transducer protector , Hemodialysis in-line filter , 0.2μm hydrophobic TP

Product Description

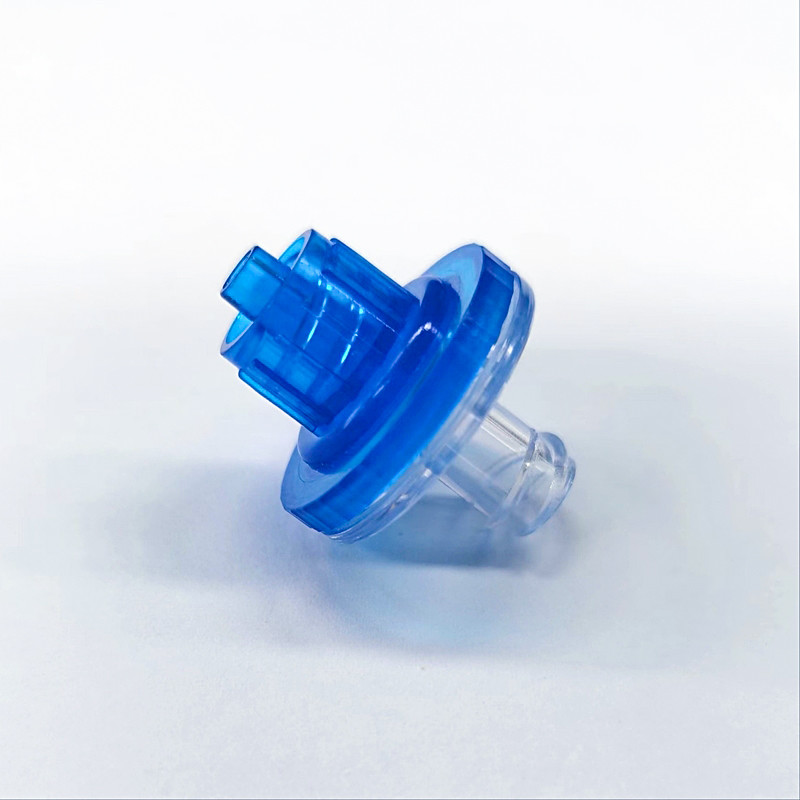

Disposable Transducer Protector 0.2 micron TP Filter

0.22 μm Pore Size Transducer Protector Hemodialysis Filter With PTFE Membrane

Transducer protectors are in-line filters specially designed to protect hemodialysis transducers from blood and moisture. These single-use TP filter units feature female and male Luer-Lock connections, integrated with premium hydrophobic PTFE membrane with 0.22 micron pore size.

PTFE membrane offers superior performance for air filtration applications, with exceptional corrosion resistance, pressure resistance, and chemical compatibility compared to PVDF membranes used in other transducer protectors.

Key Features

Cutting-edge hydrophobic membrane with 0.22 μm pore size
Protects internal pressure monitoring lines from contaminants
Antibacterial hydrophobic air filter for dialysis applications
Blocks bacteria and viruses while allowing sterile air passage
Safeguards both patients and equipment from cross-contamination
Acts as barrier against blood and dialyzing fluid

Specifications

Model	Transducer Protector - TP-012-022-T2YN
Diameter	23mm
Filter Media	Hydrophobic PTFE Membrane
Pore Size	0.22μm
Housing Material	ABS
Effective Filtration Area	2.5cm²
Connections	Female Luer Lock Male Luer Lock
Max Operating Temperature	50°C
Sterilization	ETO
Sealing	Ultrasonically Welded / Physical pressing
Colors	Natural, Clear/Blue
Packaging	1000pcs/Pack, 4000pcs/Carton

Benefits

Connects blood tubing with dialysis machine
Prevents contamination of internal pressure monitoring lines
Hydrophobic barrier allows only sterile air passage
Protects patients and equipment from cross-contamination
Prevents damage to sensitive transducer monitoring devices

Applications

Hemodialysis blood lines
In-line air venting filter for Intensive Care Unit (ICU)
